Description
Description
x

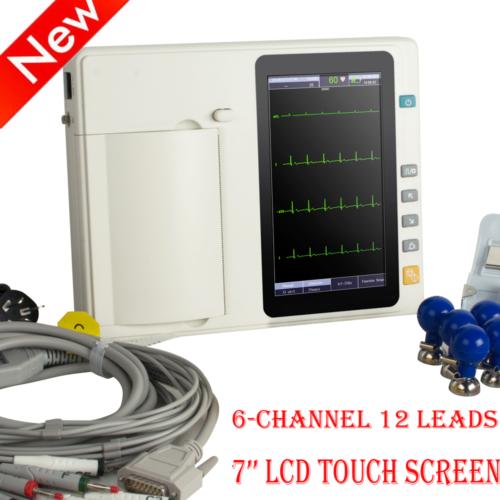

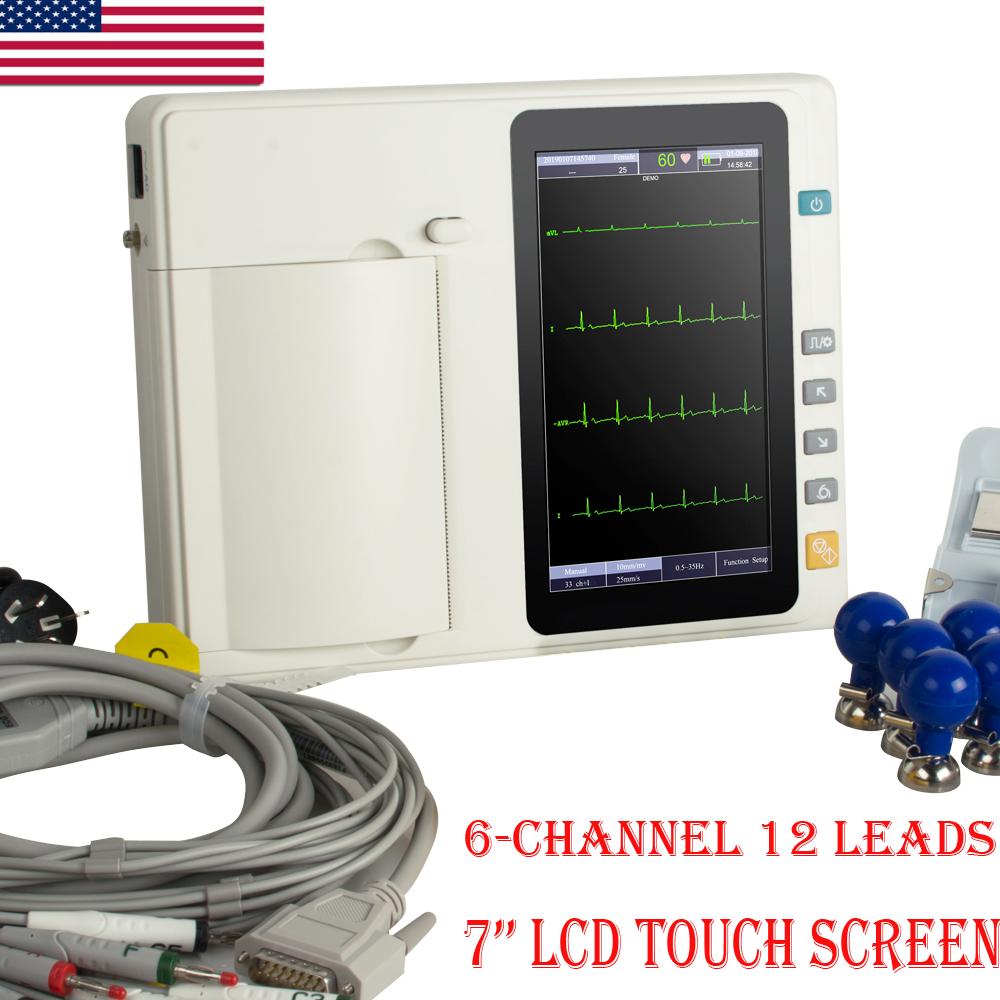

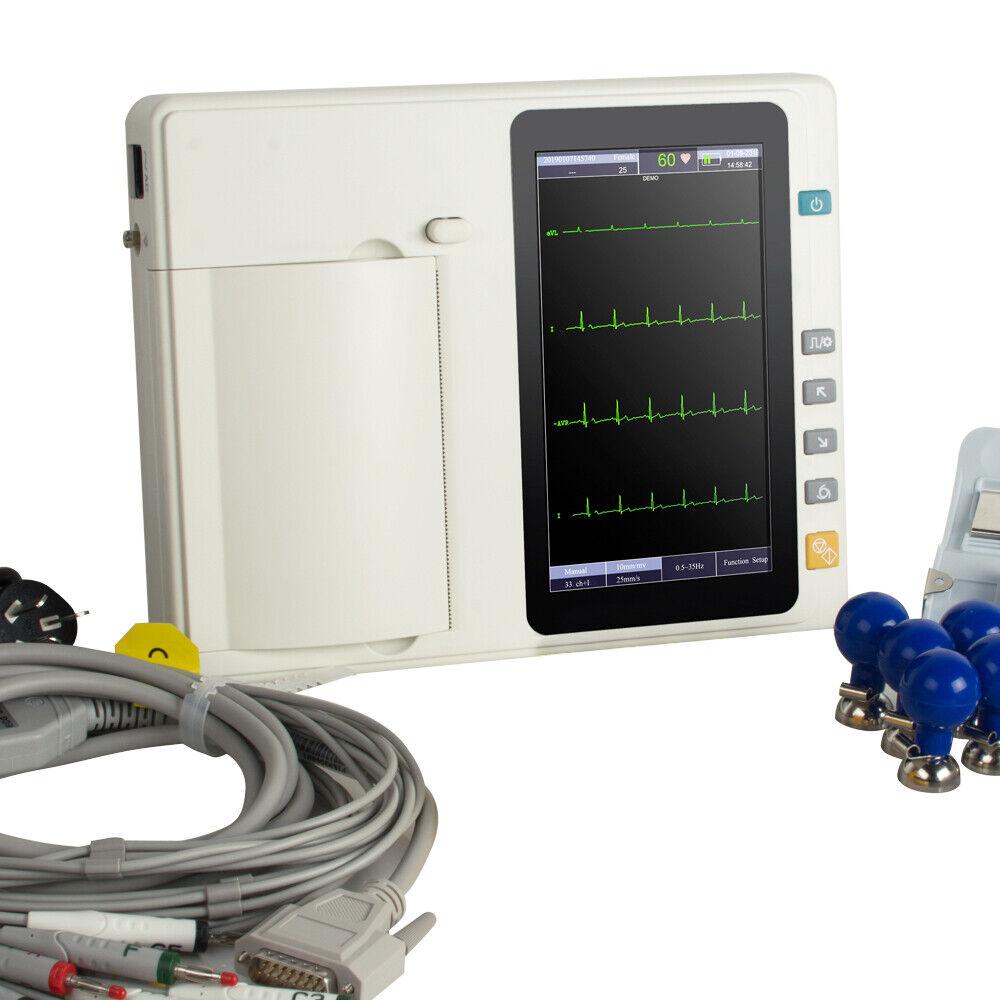

Advanced 6-Channel Electrocardiograph with Touchscreen Control

Professional-grade ECG machine featuring a 7-inch touchscreen display, 6-channel recording capability, and automatic interpretation. Designed for hospitals, clinics, and medical facilities requiring precise cardiac diagnostics with user-friendly operation.

Key Features:

  • 7-inch Touchscreen Display - Graphic LCD with dual control via touchscreen and function keys for convenient operation
  • 6-Channel Recording - Simultaneous 12-lead ECG acquisition with multiple recording modes
  • Automatic Interpretation - Built-in ECG analysis and parameter measurement to reduce workload and improve efficiency
  • Auto Baseline Drift Regulation - Effectively inhibits baseline drift for optimized printing and high-quality ECG traces

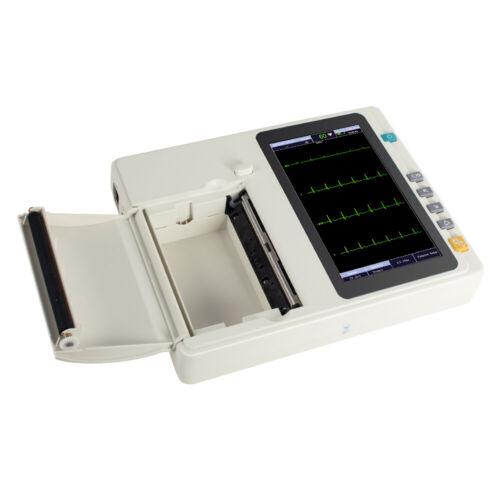

  • High-Resolution Thermal Printer - Clear, accurate ECG printouts with annotations and diagnostic parameters
  • Multiple Recording Modes - Automatic (3CH×4+1R, 3CH×4, 6CH×2), Manual (3CH, 2CH with rhythm), and selectable rhythm lead
  • Advanced Filtering - EMG, DFT, and AC filters for superior signal quality
  • Universal Power Supply - 110-240V, 50/60Hz AC compatibility
  • Defibrillator Protection - Floating input circuit with protection against defibrillator effects
  • Medical-Grade Safety - IEC60601-1 Class I, Type CF certified

Technical Specifications:

  • Standard 12-lead synchronous acquisition
  • Input Impedance: ≥50MΩ
  • CMRR: >100dB
  • Frequency Response: 0.05Hz~150Hz (-3dB)
  • Sensitivity: 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV
  • Paper Speed: 12.5mm/s, 25mm/s, 50mm/s
  • Thermal Printing: 110mm×20m paper roll
  • Power: AC 100-240V, 50/60Hz or DC 14.8V/2200mAh lithium battery

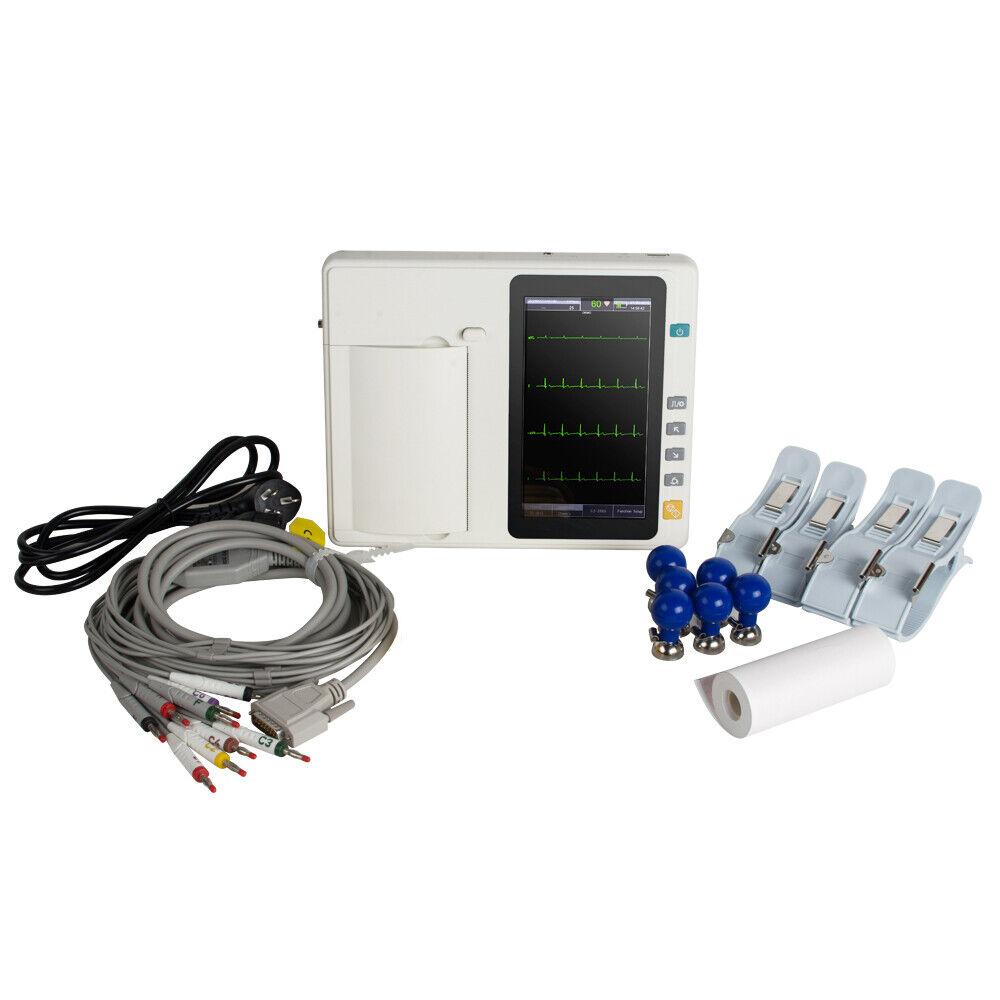

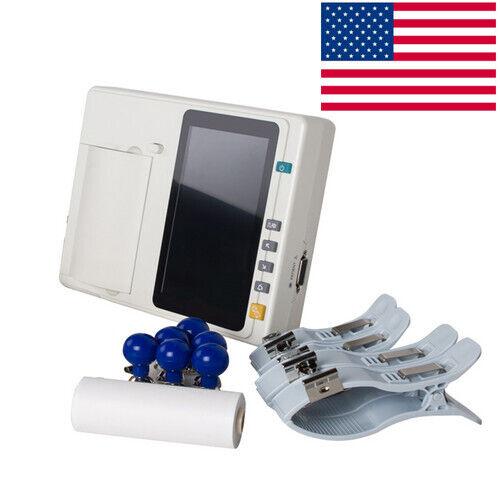

Complete Package Includes:

  • ECG Machine × 1
  • ECG Lead Wire × 1
  • Limb Clips × 4
  • Chest Suction Balls × 6
  • Thermal Printing Paper × 1 roll
  • Power Cable × 1
  • Fuse × 1

Ideal for: Hospitals, medical centers, cardiology departments, clinics, and healthcare facilities requiring professional ECG diagnostics with advanced features and reliable performance.
