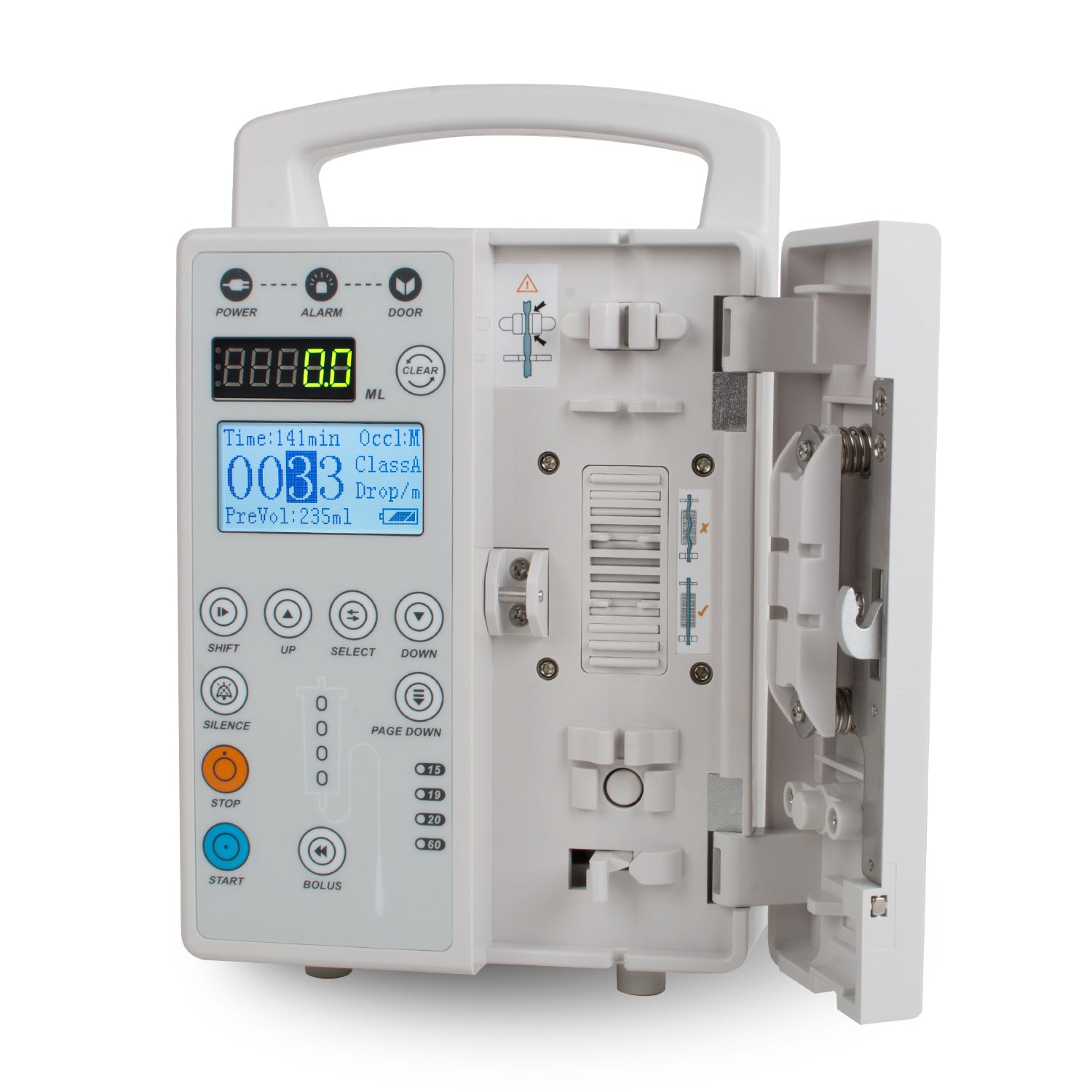

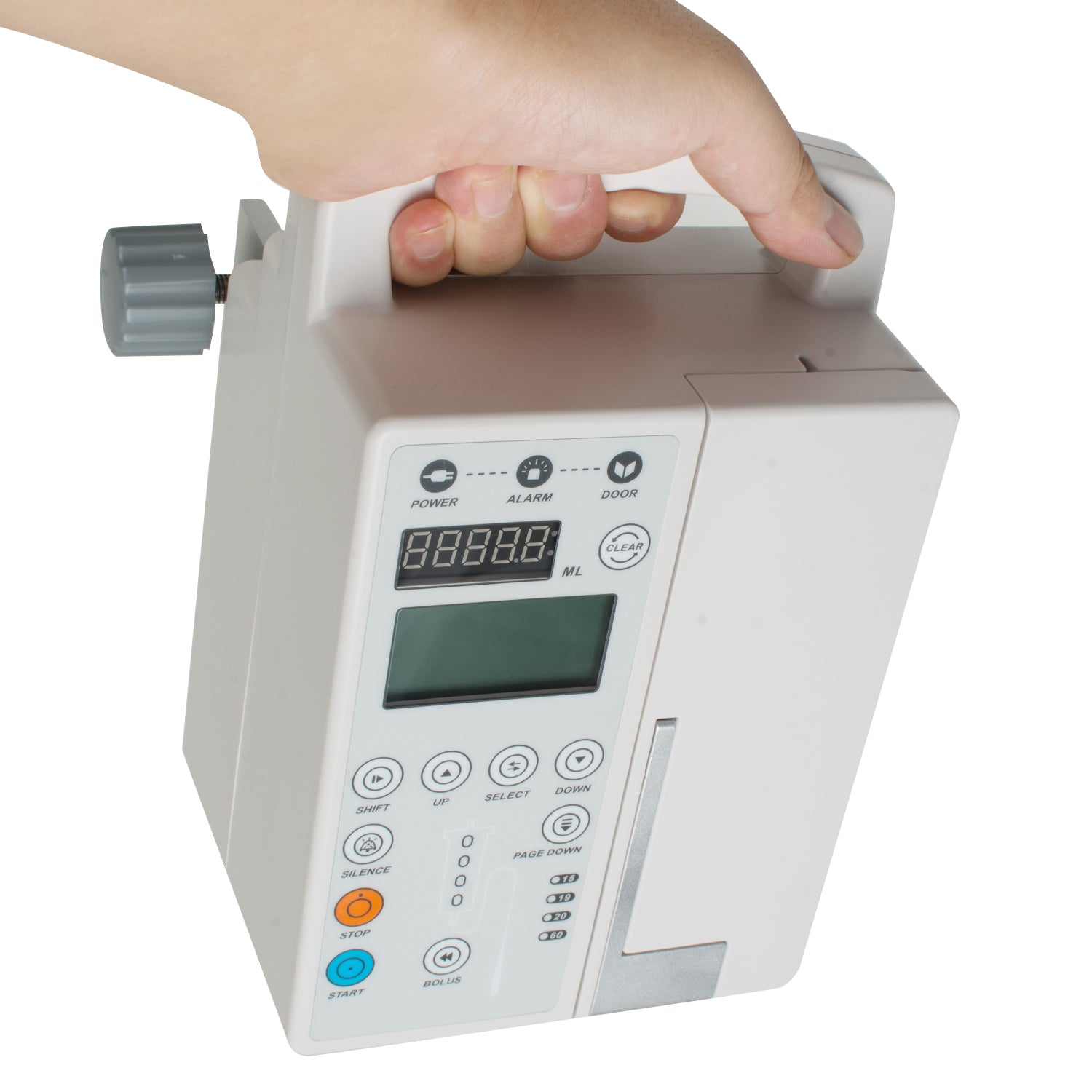

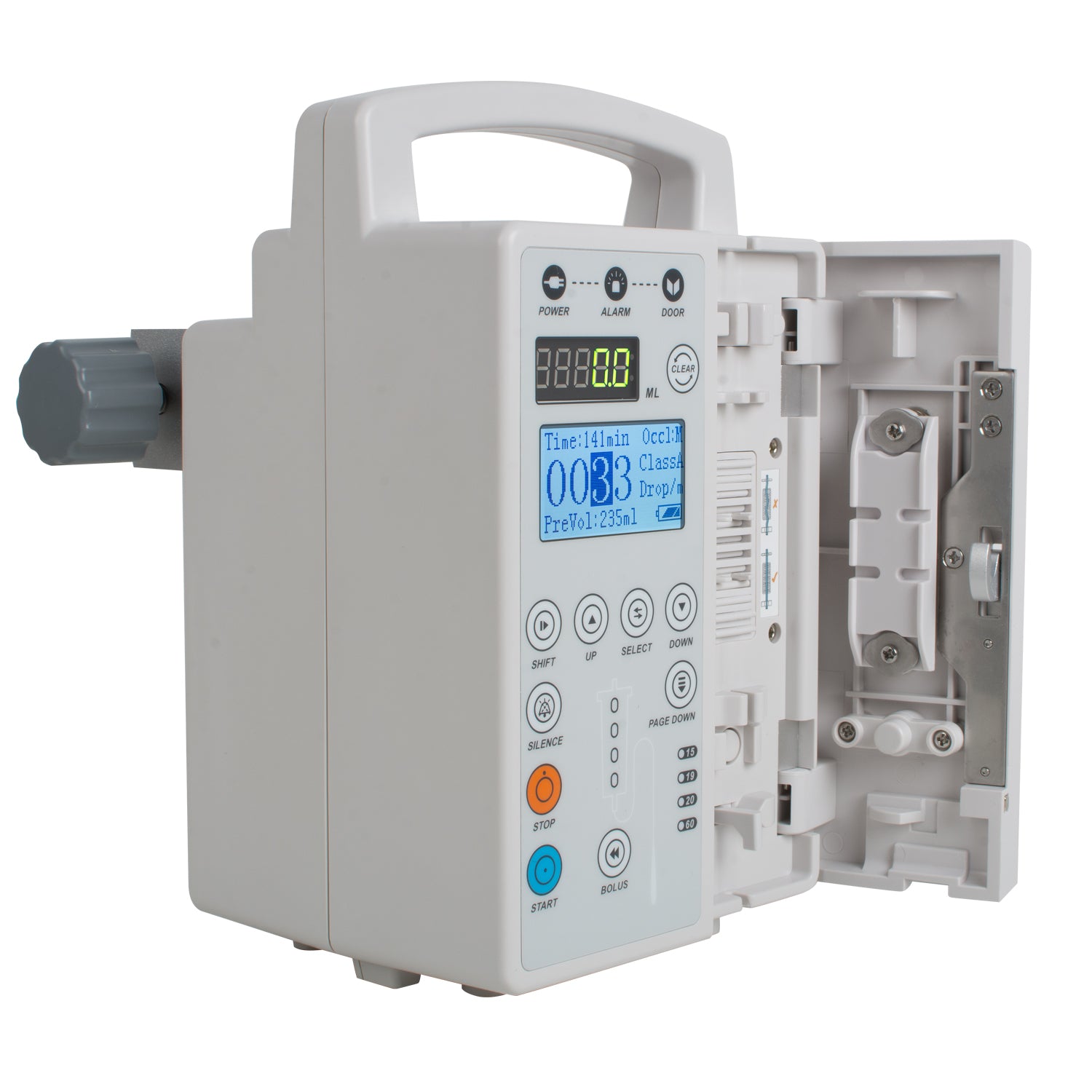

Description
xAudible and visual alarm for occlusion, empty, low battery, end of infusion, door open, wrong setting etc, which gain patents

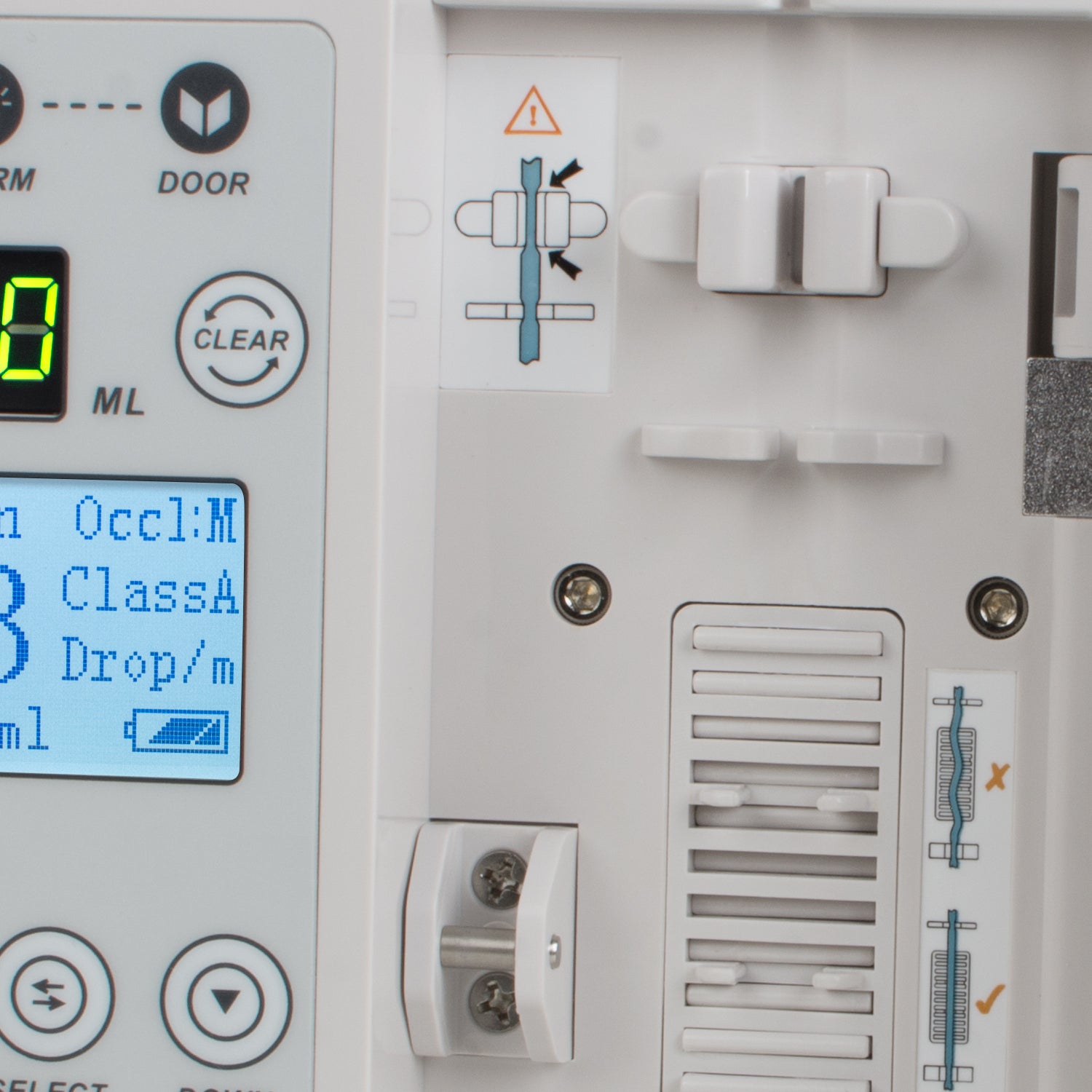

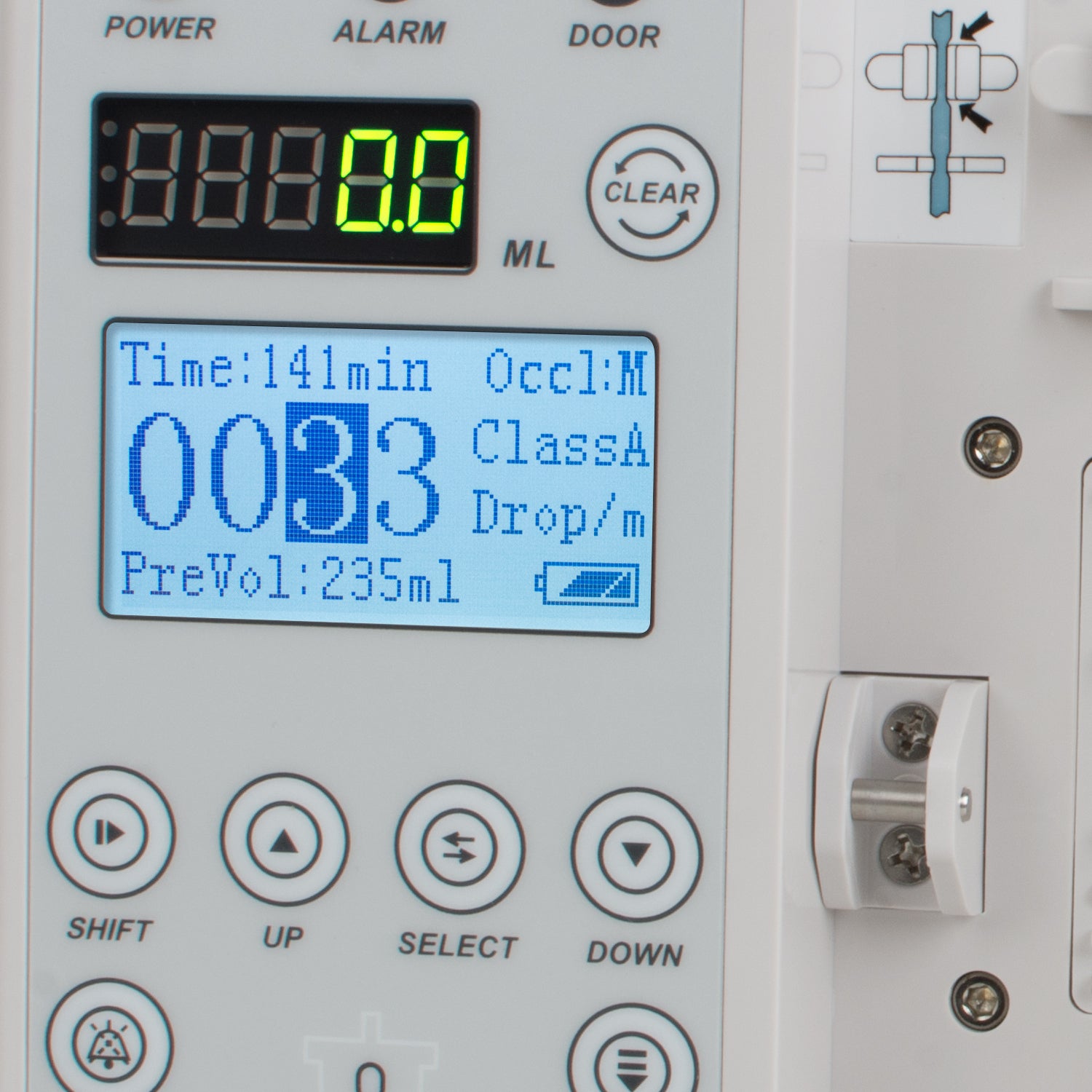

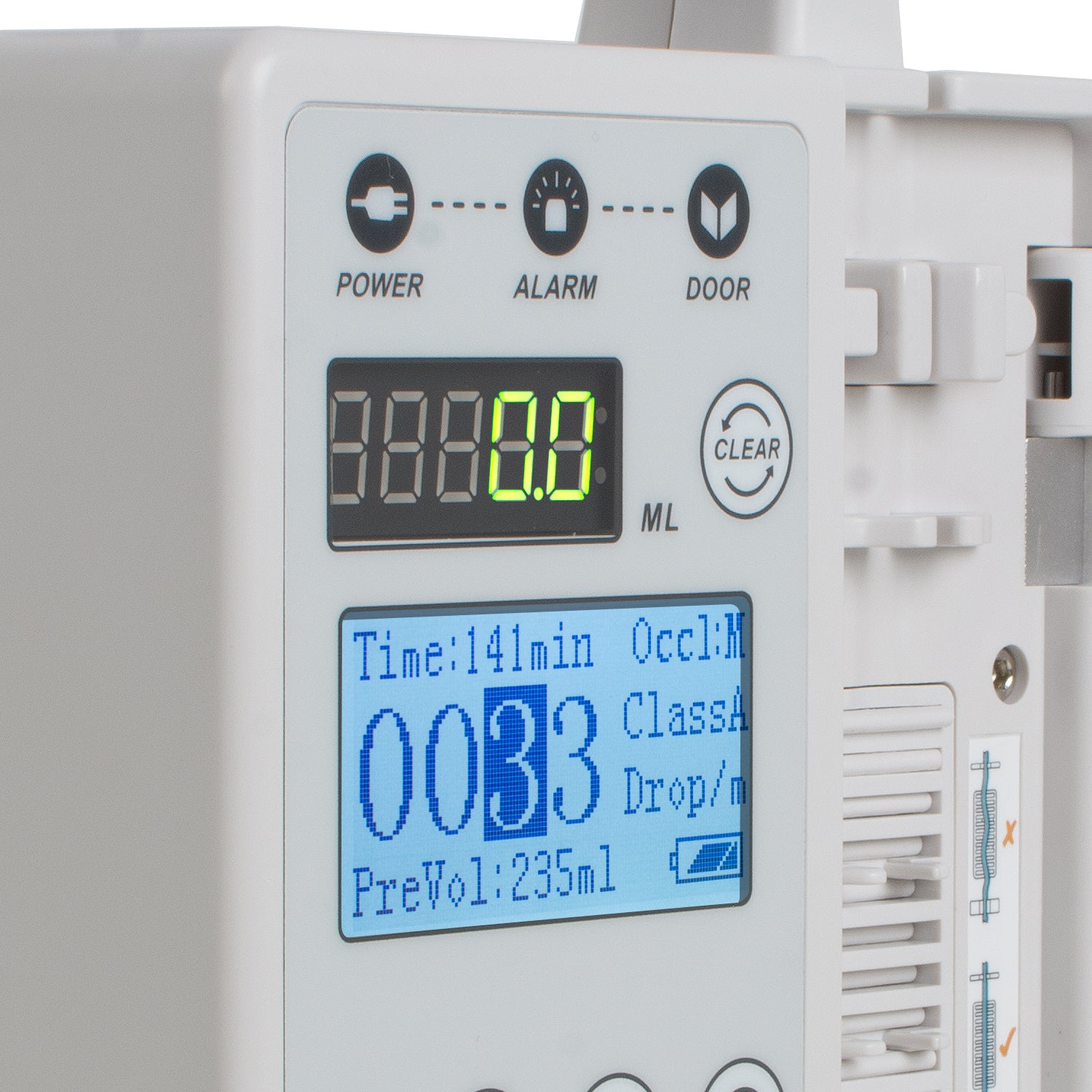

HD LCD Display, high capacity words, friendly user interface, dynamically display working status
Compatible with any brand of infusion sets after correct calibration
Preset Solution Volume to greatly reduce the workload of nurses
Work mode: ml/h and drop/min can switch freely
Three levels of occlusion: high, middle and low
Purge function
KVO: KVO (keep-vein-open) automatically opens as infusion is completed.

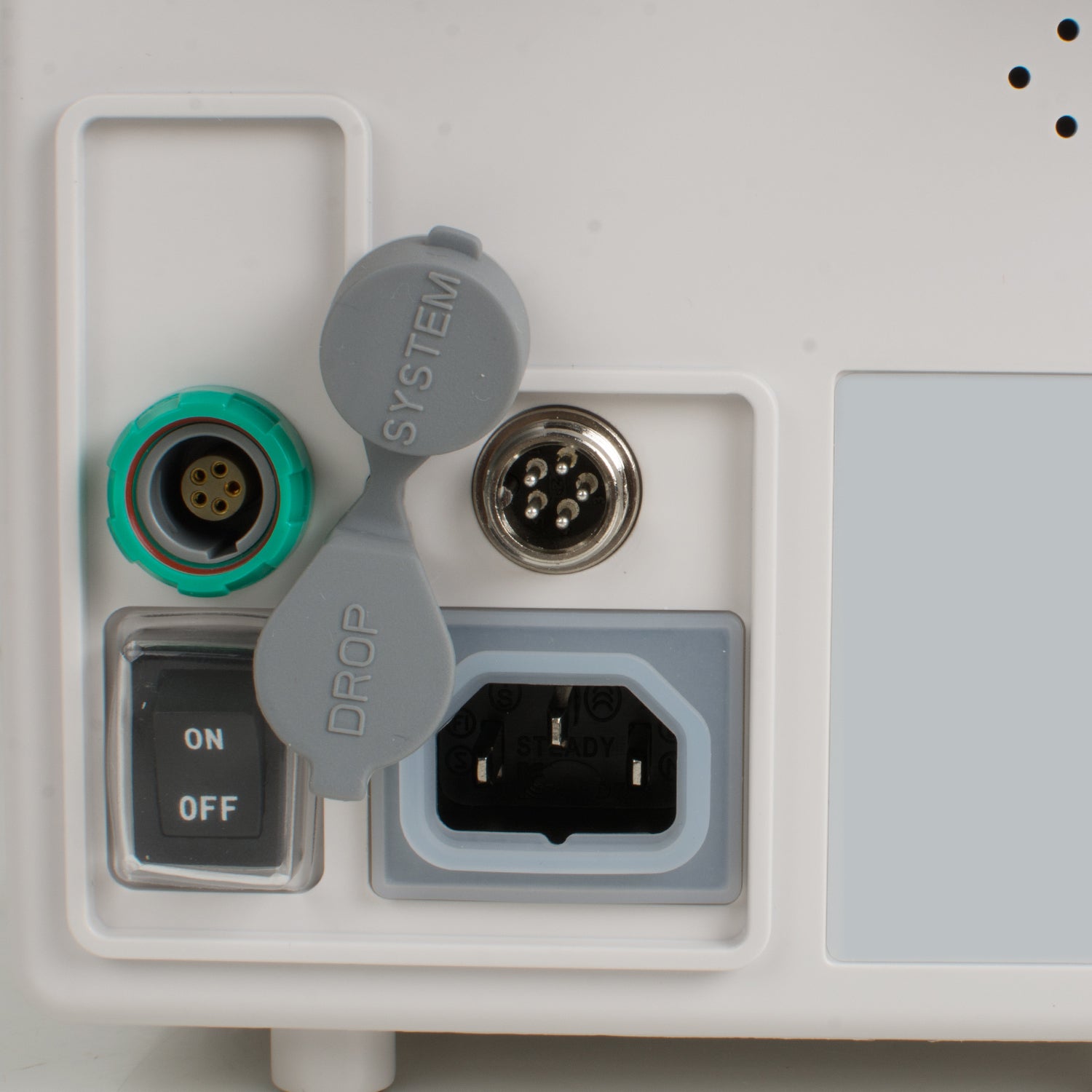

Power Source: AC100-240V, 50/60Hz; Internal Battery
Automatically record the settings of last infusion can be available per customers' request
language: English, Poland, Latvian, Russian etc.
Specification:
1. Infusion Rate 0.1ml/h---1200ml/h (1ml/h step ,input 016 when set the rate from 800 to 1200ml/h)
2. Rate Accuracy within±5% (after correct calibration）
3. Purge Rate 100ml/h---1200ml/h(can be calibrated)
4. Volume Limit 0ml---9999ml Total Infusion Volume 0---9999.9 ml
5. Alarm Pressure High:800mmHg±200mmHg(106.7kPa±26.7kPa)
Medium:500mmHg±100mmHg(66.7kPa±13.3kPa)
Low:300mmHg±100mmHg(40.7kPa±13.3kPa)
Medium:500mmHg±100mmHg(66.7kPa±13.3kPa)
Low:300mmHg±100mmHg(40.7kPa±13.3kPa)
6. Alarms : end of injection, occlusion, door open, bubbles in the tube, wrong setting,
low battery, AC power pulled out etc
7. Power source 100V---240V 50/60Hz
8. Internal rechargeable Li battery volume≥1,600mAh
4 hours internal battery backup
4 hours internal battery backup
9. Bubble Detector ultrasonic wave detector, detection sensitivity ≥25μL
10. KVO Speed 1ml/h---5ml/h (1ml/h step)
11. Power Consumption 15VA
12. Operation Environment Temperature +5----+40 degree
Relative Humidity 20----90%
Storage Temperature -30-----+55 degree
Humidity ≤95%
Atmospheric Pressure 50.10KPa----106.0KPa
Relative Humidity 20----90%
Storage Temperature -30-----+55 degree
Humidity ≤95%
Atmospheric Pressure 50.10KPa----106.0KPa
13. Weight 1.8kg

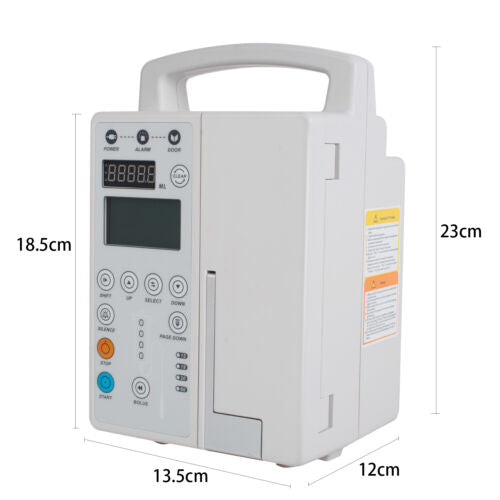

14. Dimension 140mm (L)x 157mm (W)x 220mm (H)
15. Infusion set brand Compatible with any brand
16.Forbidden Not support blood Infusion
17. Package 1pc per each Carton, 2.8KG; 24cm (L) x 26cm (W) x 31cm (H)
2pc per each Carton, 5.8KG; 52cm (L) x 30cm (W) x 36cm (H)
3pc per each Carton, 9KG; 76cm (L) x 30cm (W) x 36cm (H)
2pc per each Carton, 5.8KG; 52cm (L) x 30cm (W) x 36cm (H)
3pc per each Carton, 9KG; 76cm (L) x 30cm (W) x 36cm (H)
