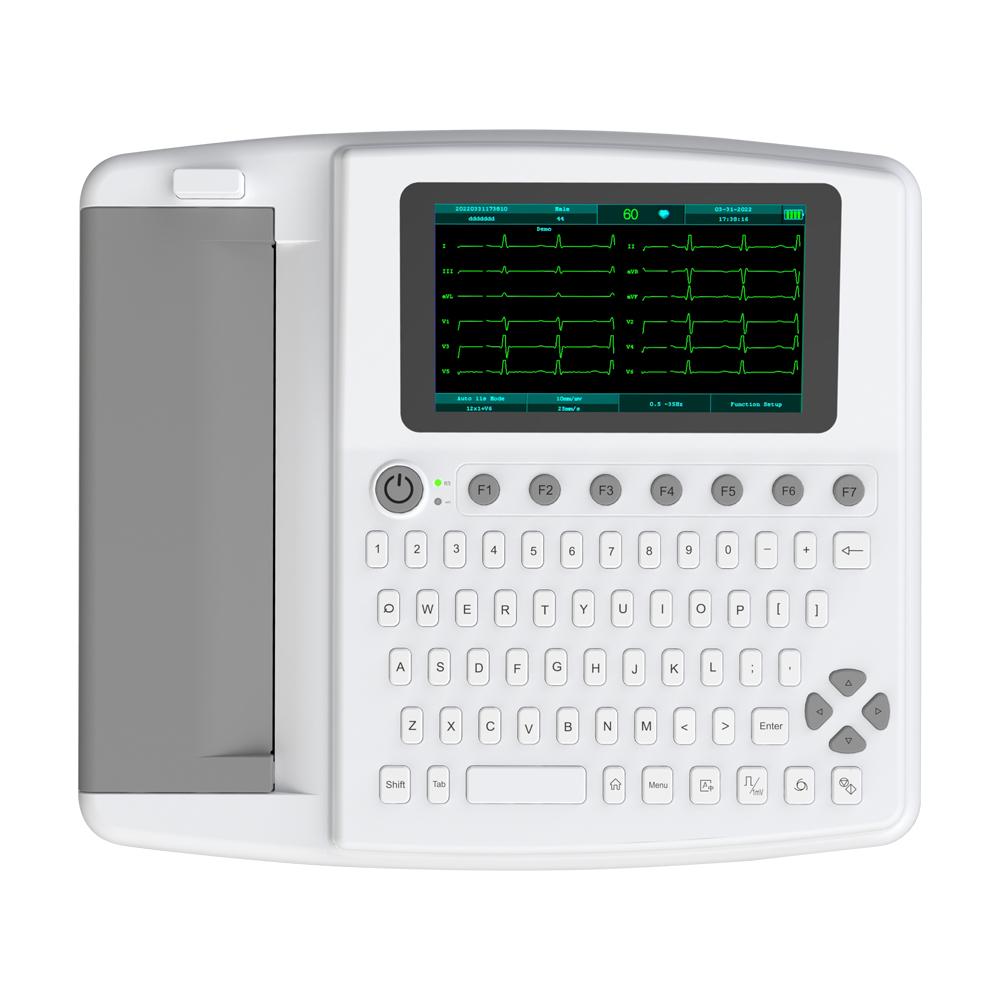

Portable 12-Lead ECG Machine with 7" Touchscreen

Professional Portable Electrocardiograph with Advanced Features

High-performance 12-lead ECG machine featuring a 7-inch color touchscreen, automatic interpretation, and extensive memory storage. Designed for ICU, clinics, and mobile cardiac monitoring with intuitive operation and comprehensive data management capabilities.

Key Features:

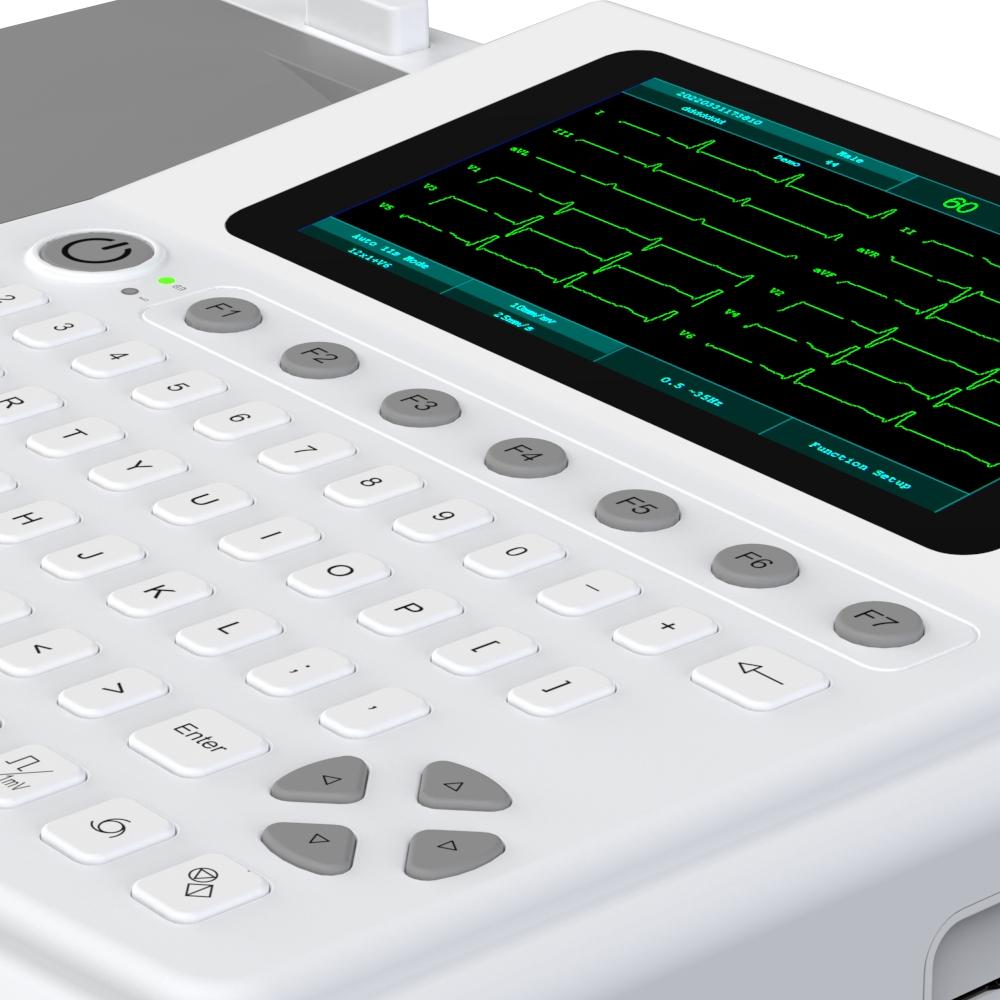

• 7-inch HD Color Touchscreen - High-resolution display with touch and function key control for efficient operation

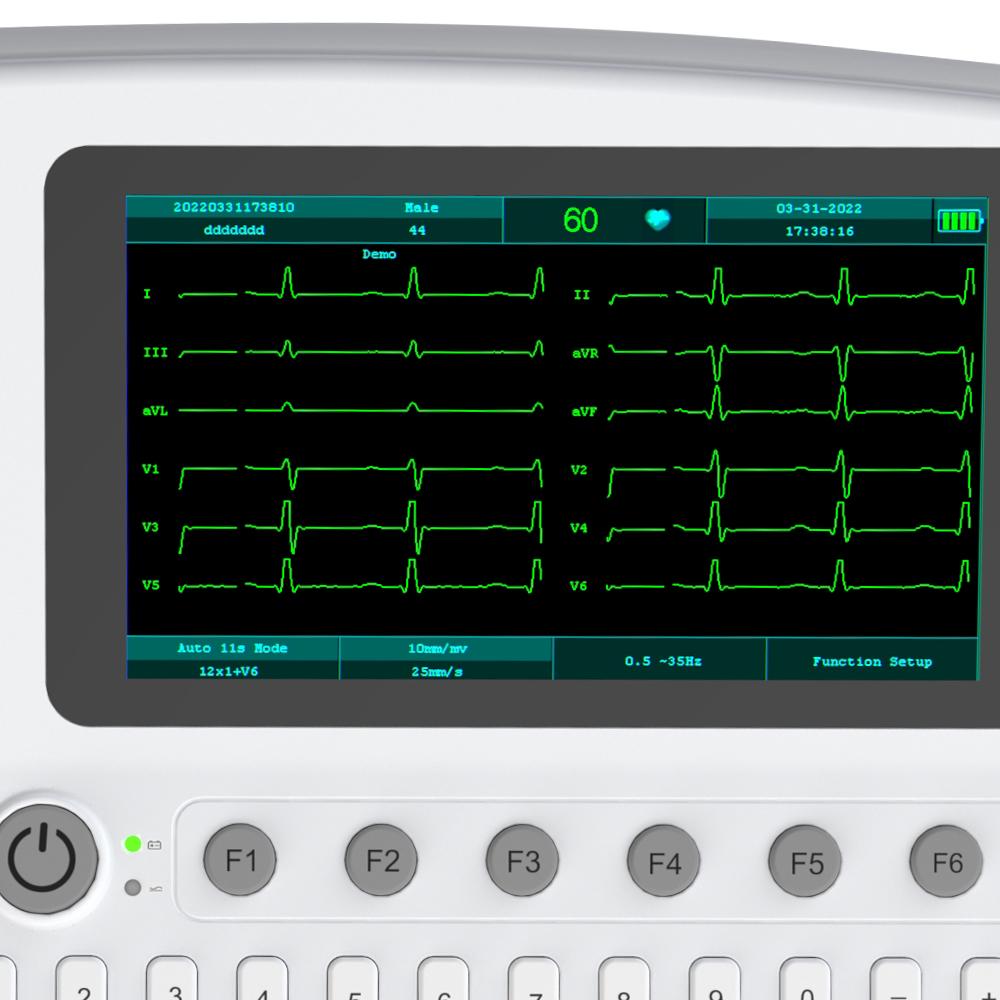

• Simultaneous 12-Lead Acquisition - Real-time ECG signal collection and display from all 12 leads
• Automatic Interpretation - Built-in ECG measurement and analysis system for accurate diagnostics
• Large Memory Capacity - Store up to 1000 patient cases for review and statistical analysis
• Rechargeable Battery - High-capacity lithium battery (14.4V, 2500mAh) for mobile use
• Built-in Thermal Printer - Multiple printing modes and formats (210mm × 30m paper)

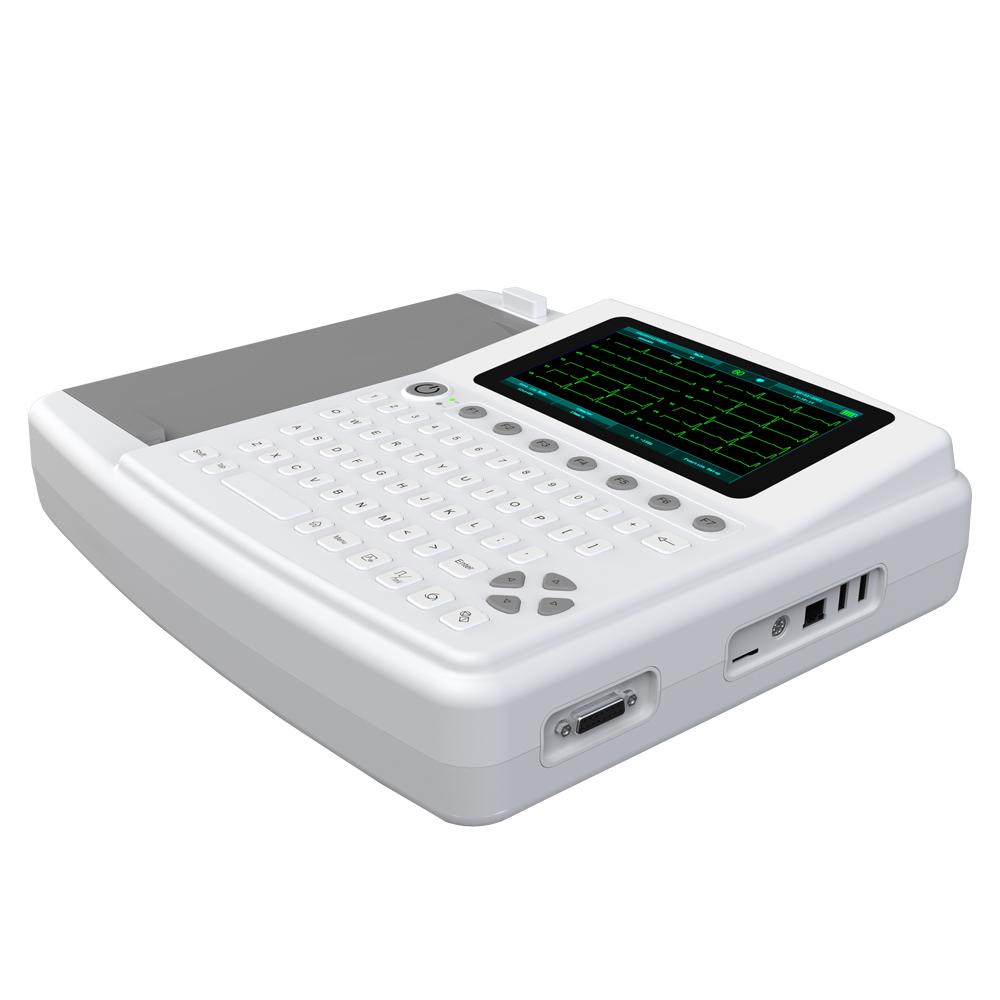

• Expandable Storage - USB flash disk and micro SD card support for extended memory
• PC Connectivity - Transfer ECG data to computer via USB with playback software

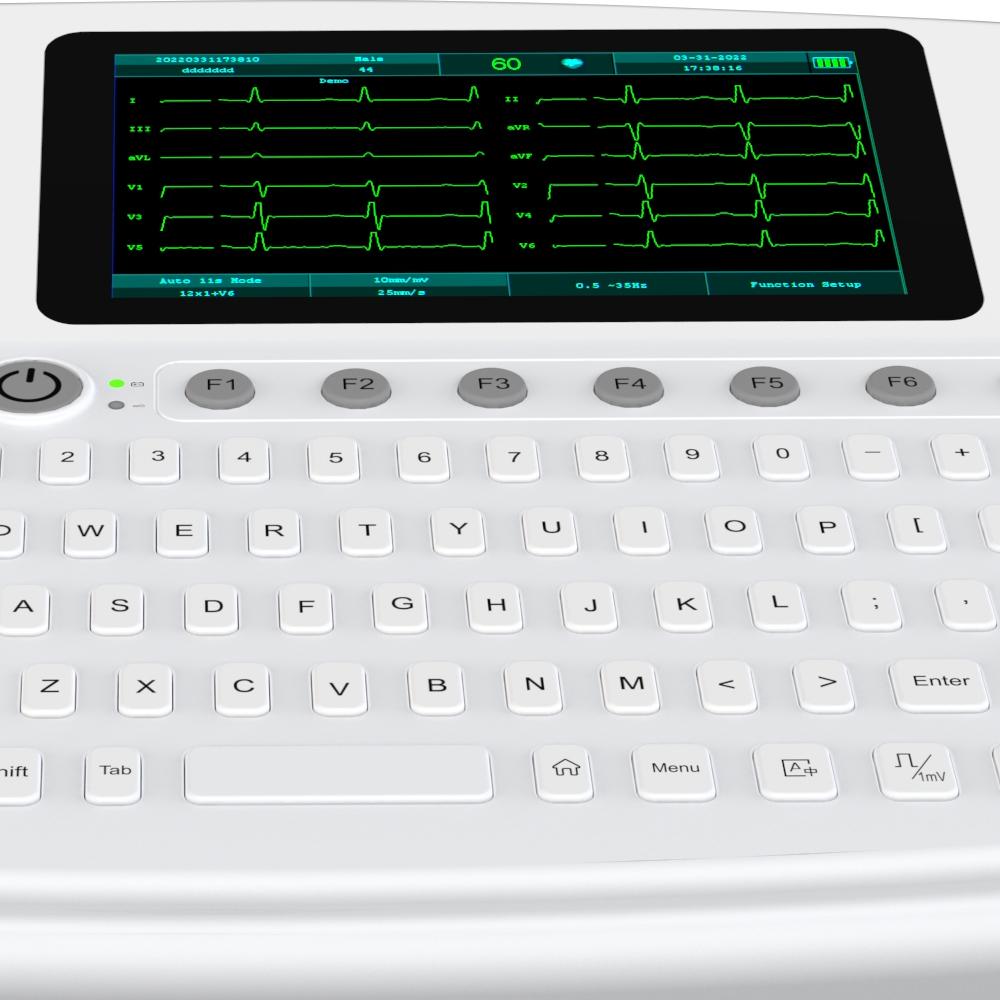

• Full Alphanumeric Keyboard - Shortcut keys for efficient data entry and operation
• Multiple Operation Modes - Manual, Auto, Rhythm, and 1-channel 1-minute recording

Technical Specifications:

• Sampling Rate: 1000Hz with 24-bit A/D converter
• Frequency Response: 0.05~160Hz (-3dB)
• Input Impedance: ≥50MΩ (10Hz)
• CMRR: ≥100dB (with AC filter)
• Sensitivity: 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV
• Paper Speed: 12.5mm/s, 25mm/s, 50mm/s (±3%)
• Filters: AC (50/60Hz), EMG (25-150Hz), DFT (0.05/0.5Hz)
• Defibrillator Protection: Floating input circuit
• Dimensions: 365.4 × 323 × 85mm
• Weight: 2600g (without paper)
• Power: AC 100-240V (50/60Hz) or DC 14.4V rechargeable battery

Complete Package Includes:

• Electrocardiograph × 1
• Lead Cable × 1
• Chest Electrodes × 6
• Limb Electrodes × 4
• Power Cable × 1
• Grounding Cable × 1
• Thermal Recording Paper × 1 roll

Ideal for: ICU units, emergency departments, cardiology clinics, mobile health services, and medical facilities requiring portable yet comprehensive ECG diagnostics with data management capabilities.
