Description
Small size,light weight,handheld
Compact main body with should & wrist belts,free hands
Rubber protector around the scanner against dirt and impact from the outside

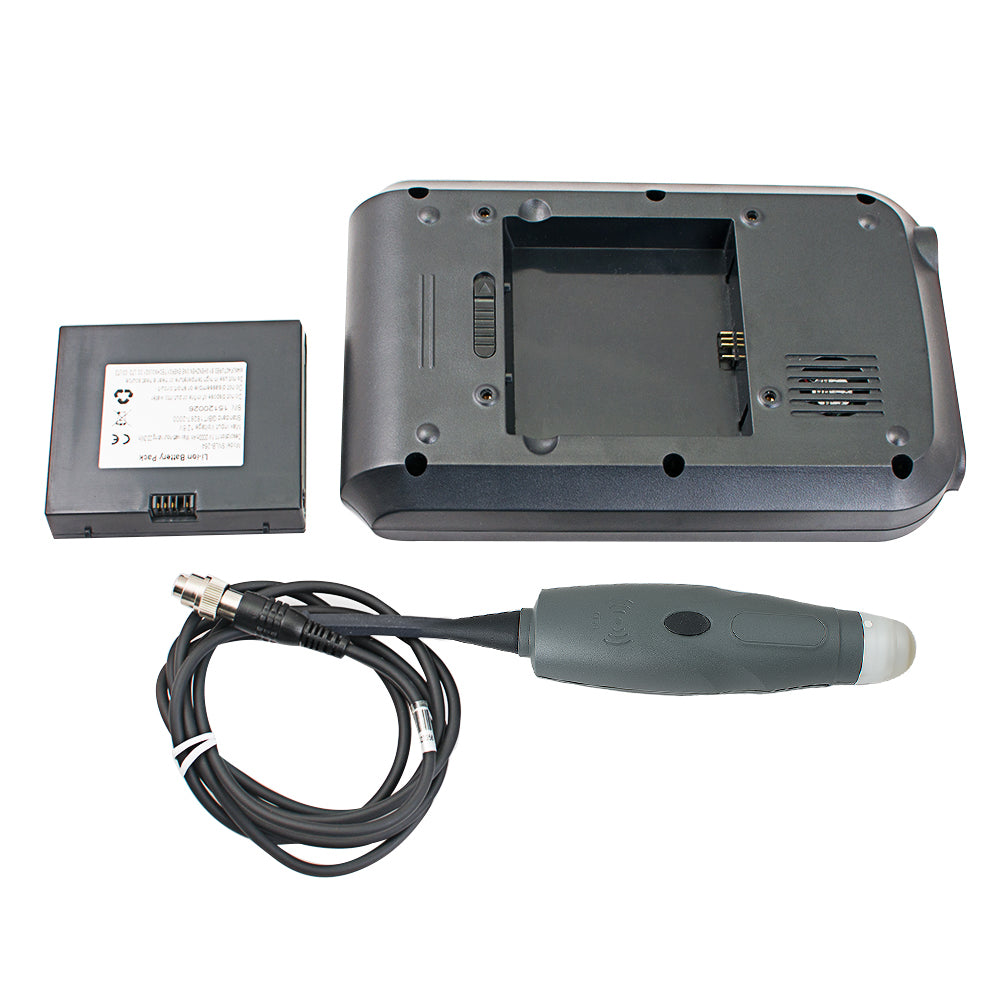

Liion rechargeable battery can be removed easily.
Both battery and AC powered.
Description:

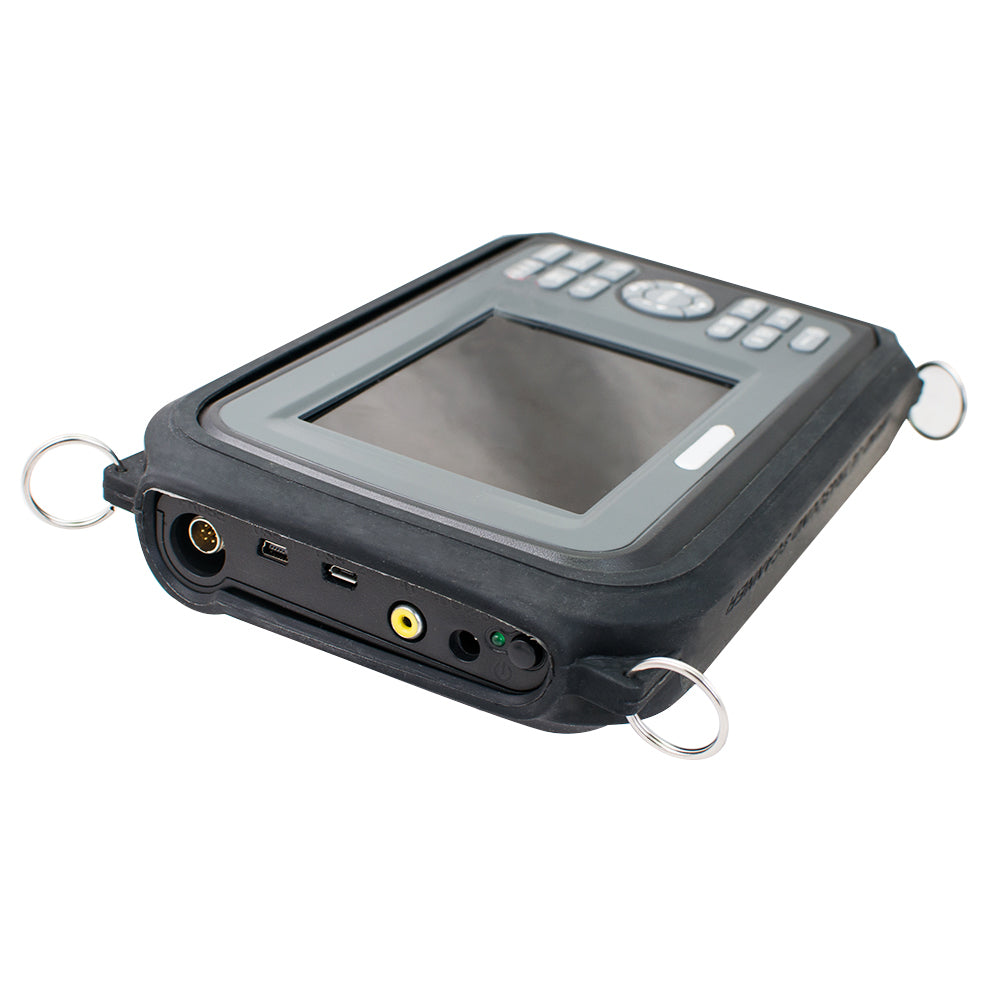

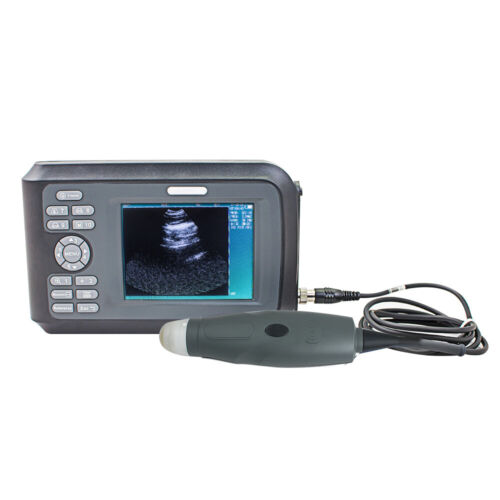

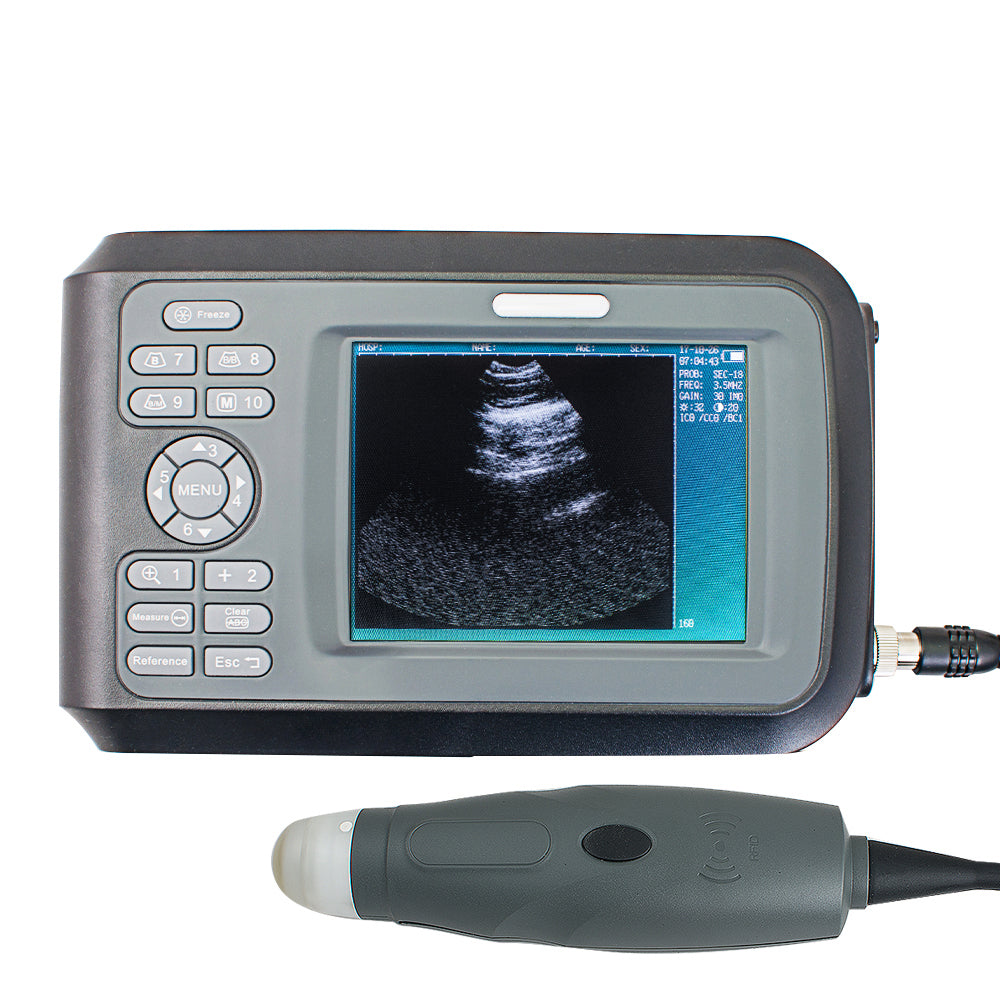

HandScan V7 is small in size, but big in functionality and features. with dust -proof and water -proof ,
you could make earlier, faster and more accurate diagnosis at the point of animal pregnancy at
anytime, anywhere, no matter at animal hospital, even in or outdoor.
Specifications:
|
Probe |
3.5MHz Mechanical Sector Probe |
|
|
Detect Depth(mm) |
≥140 |
|
|
Resolution |
Lateral |
≦4(Depth≦80) |
|
≦5(80<Depth≦130) |
||
|
(mm) |
Axial |
≤2(Depth≦80) |
|
Blind zone(mm) |
≤8 |
|
|
Geometric position precision |
Horizontal |
≤20 |
|
Vertical |
≤10 |
|
|

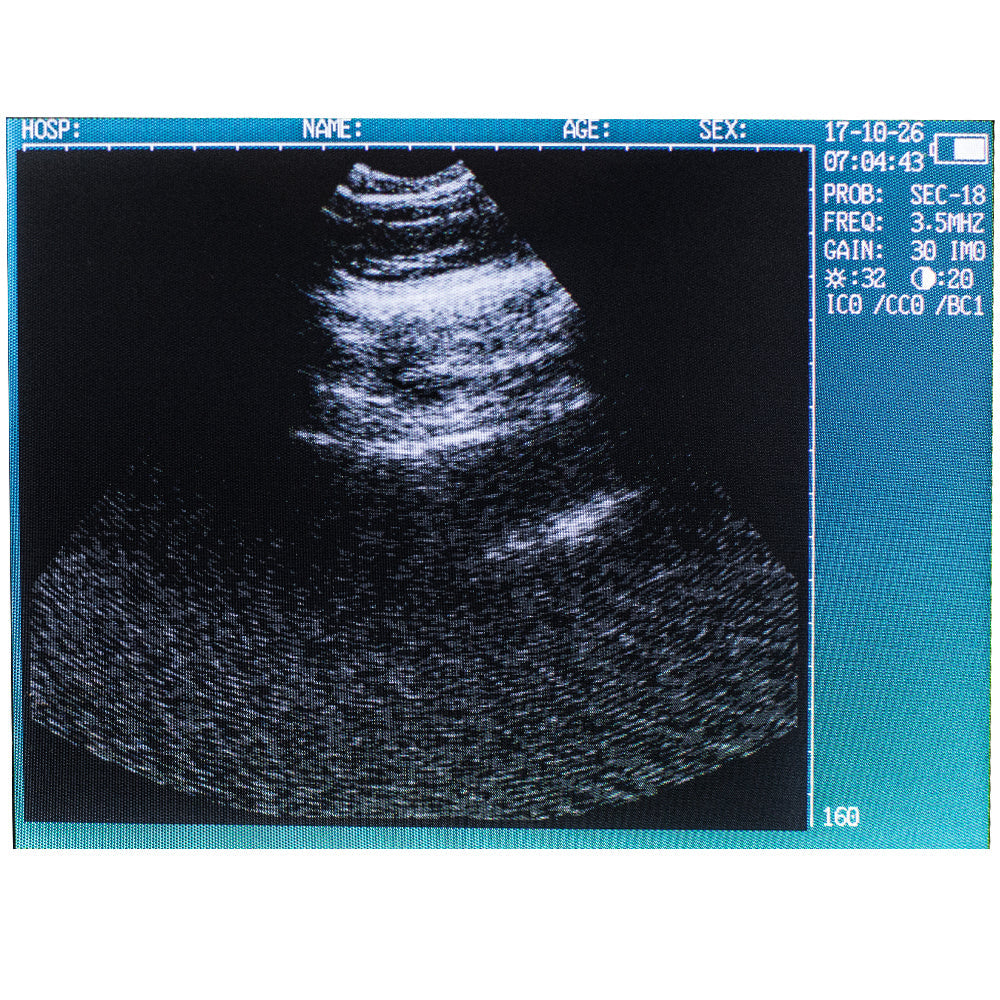

Display Mode |
B,B+B,B+M,M |
|
|
Image gray scale |
256 |
|
|
Scan Depth(mm) |
120~190,8 leavels adjustable |
|
|
Measurement |
Distance,circumference,area,volumheart rate,Ga, EDD |
|
|
Annotation |
Hospital,name,age,sex |
|
|
Battery capacity |
2200mAh |
|
|
Mainframe power consumption |
13W at non-charging/25W at charging |
|
|
Adapter power consumption |
45W |
|

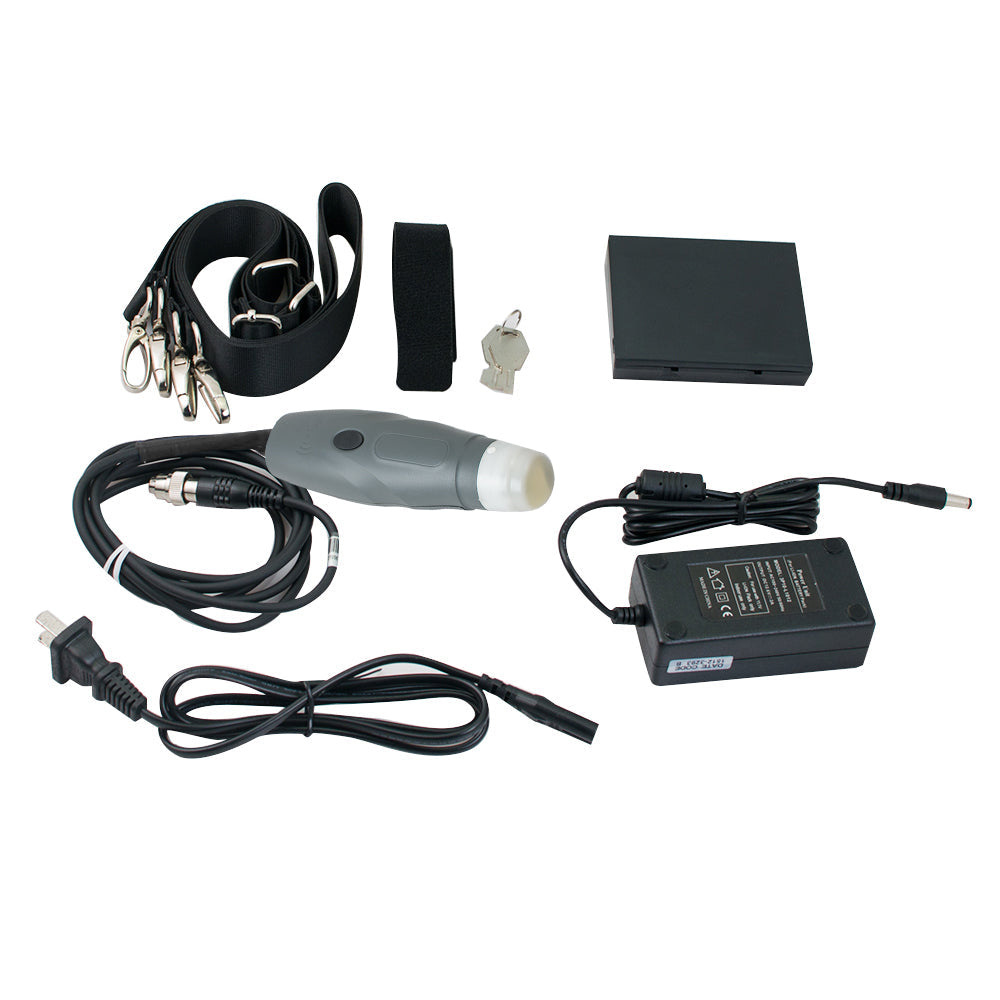

Package list:
Main unit

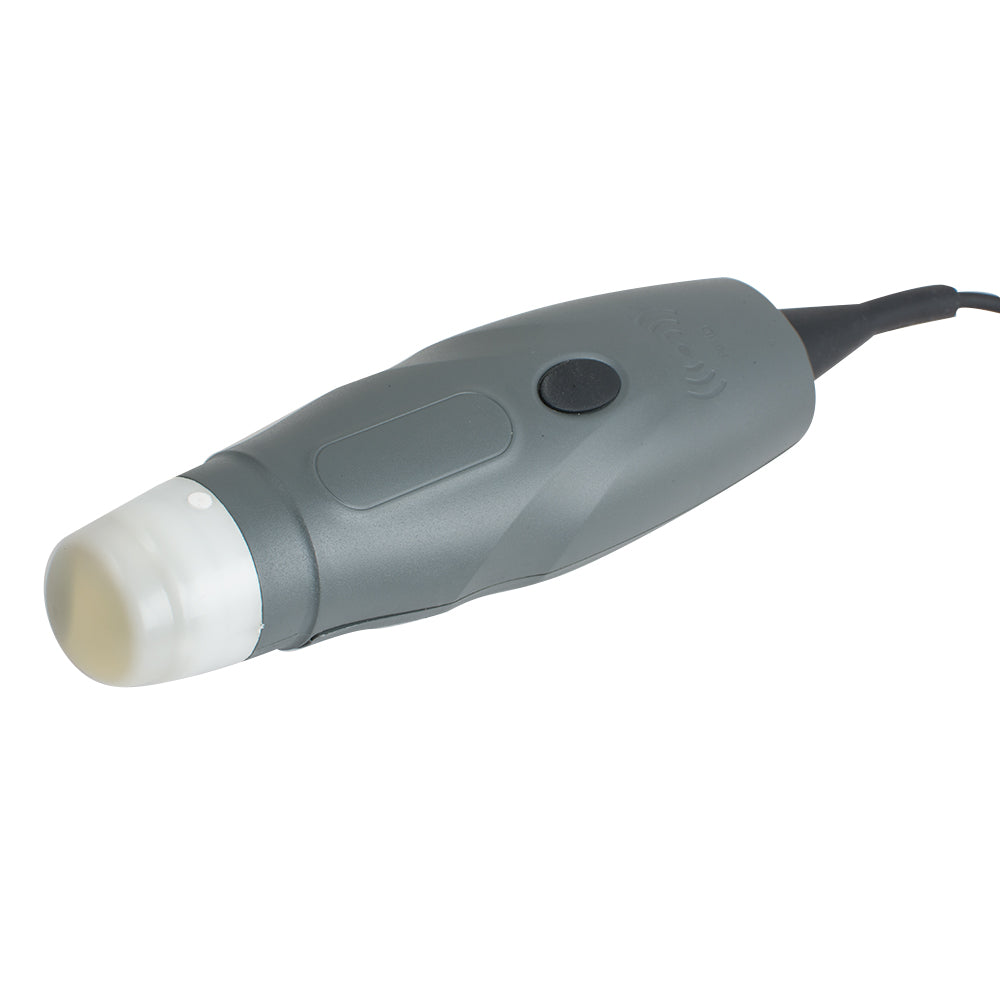

3.5MHz mechanical sector probe
Rubber protector
Rechargeable battery
AC adapter
Neck belts
Operation manual
Note:
The Ultrasound Scanner Machine Can Only Used By Small Animals, Such As Cats And Dogs.
